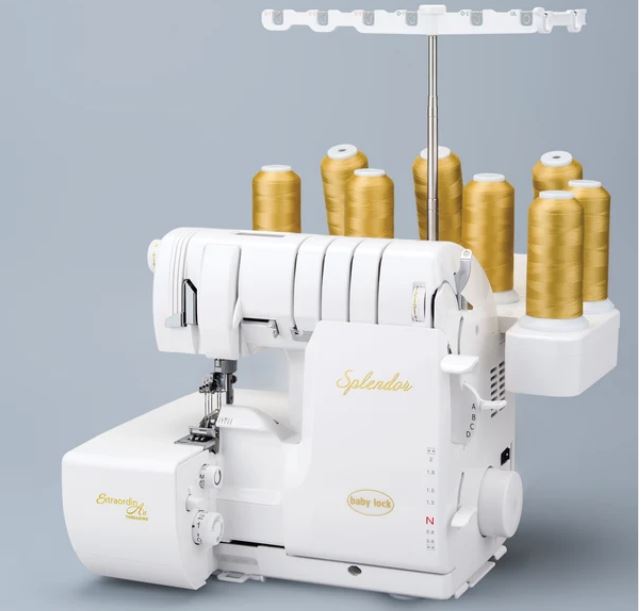

Baby Lock Splendor

The Splendor is versatile 8-thread machine that offers both overlocker and coverstitch stitches. It features an Automatic Thread Delivery System (ATD) for tension-free overlocking and the convenient

 ExtraordinAir™ Threading - that threads the loopers with a touch of a button.

Splendor has you covered for your sewing journey for all the splendorous projects on your list, it is perfectly sized and packed with amazing features, making your sewing experience enjoyable.

The Splendor is an overlock/coverstitch combination machine, which includes the 4-hole coverstitch table for using optional Knit Binders and gives you 60 plus stitches combinations. As well as this, the Splendor has all the features you would expect on a Baby Lock including tubular loopers, coverstitch chain off and so much more.

Achieve the professional finish that all your projects deserve, as the Splendor is the easiest combination machine to operate. With so many advanced features and stitch options, you will be creating in ways you never imagined in no time at all.

Splendor features:

• ExtraordinAir™ Threading for loopers
• Automatic Thread Delivery (ATD) System - no tensions
• 2 inch Throat Space
• 6mm Presser Foot Height
• Adjustable Presser Foot Pressure Dial
• Convenient Presser Foot Lever - (right of machine)
• 4-Hole Coverstitch Table - Knit Binder Compatible
• Knee Lift
• 4 x LED lighting
• Magnetic Needle Storage
• Trim Bucket included





What's in the box

• Instruction manual
• Quick reference threading guide
• Presser foot lever indication sticker
• Combination foot control & power cord
• Package of assorted sized needles Organ ELx705CF
• 4-Hole Flat table for chain/cover stitching
• 2 x Guide fixing screws for table
• Lint brush/needle insert tool
• Manual needle threader
• Allen screwdriver
• Tweezers
• Upper cutting blade for replacement
• Screwdriver
• Looper threading tool
• 2 x Overlock needle screws
• 2 x Chain/cover stitch needle screws
• 8 x Thread nets
• 8 x Sponge disks
• 8 x Spool cap
• Machine cover
• 8 x Cone holders
• Flat sole presser foot with 3 ribbon/tape guides
• Knee Lift
• Thread stand extension
• Trim Bucket



Splendor Specifications

fications
Machine Type	8-Thread Overlocker
Machine Type	Coverstitch
Threading System	ExtraordinAir™
Key Technology
Number of Threads	8
RevolutionAir™ Threading – Needles & Loopers	✘
ExtraordinAir™ Threading	✔
NEW JetAir™ (easier looper threader engagement)	✘
JetAir™ Threading	✘
Tension System	Auto Thread Delivery (ATD) System
Lighting	4 LED
Throat Space	2"
True 2 to 1 ratio differential feed - ranging from 0.6 to 2	✔
Knee Lift (Presser Foot)	✔
Variable Speed Control (easily set the maximum speed)	✘
Exclusive Fabric Support System	✔
Vertical Needle System – minimises needle deflection	✔
Advanced Features
Combination Stitch Options	60 plus
Coverstitch: triple, wide (6mm), narrow (3mm) & single chain stitch	✔
Overlocking stitch Options: 4/3/2 Thread	✔
Exclusive Wave Stitch and Reverse Wave Stitch	✔
Automatic rolled hem stitch with the turn of a dial	✔
Flatlock stitch option for seaming and decorative effects	✔
Stitch Length	0.75 to 4mm
Stitch Width – Overlocking	1.5 to 7.5mm
Stitch Width – Expressive (overlocking & coverstitch combined)	Up to 16mm
Heavy duty cutting system – cut thick fabrics easily	✔
Presser Foot Pressure Adjustment	Easy Dial
Presser Foot Height	6mm
Sewing speed (stitches per minute)	up to 1500
Convenience Features
Magnetic Needle Storage	✔
Colour Coded Quick Reference Threading Guide	✔
Built-in Manual Needle Threader	✘
Position of presser foot lever	Right Side
Included Foot	Flat Sole Foot with 3 ribbon/tape guides
Built in Thread Cutter	✔
Guard plate for needle screws	✔
Built in Accessory Storage	✔ Large
Safety Switches	1
Needle Drop Tray	✔ + Magnet
Electronic Foot Control	✔
Other Features
Needle Type	EL 705 CF
Machine Weight	13kg
Made in Japan & 5 Year Conditional Warranty	✔
Optional Accessories
Optional Feet Available	16
Optional Attachments	21
Compatibility with Knit Binders/Lap Seam Binder	✔
